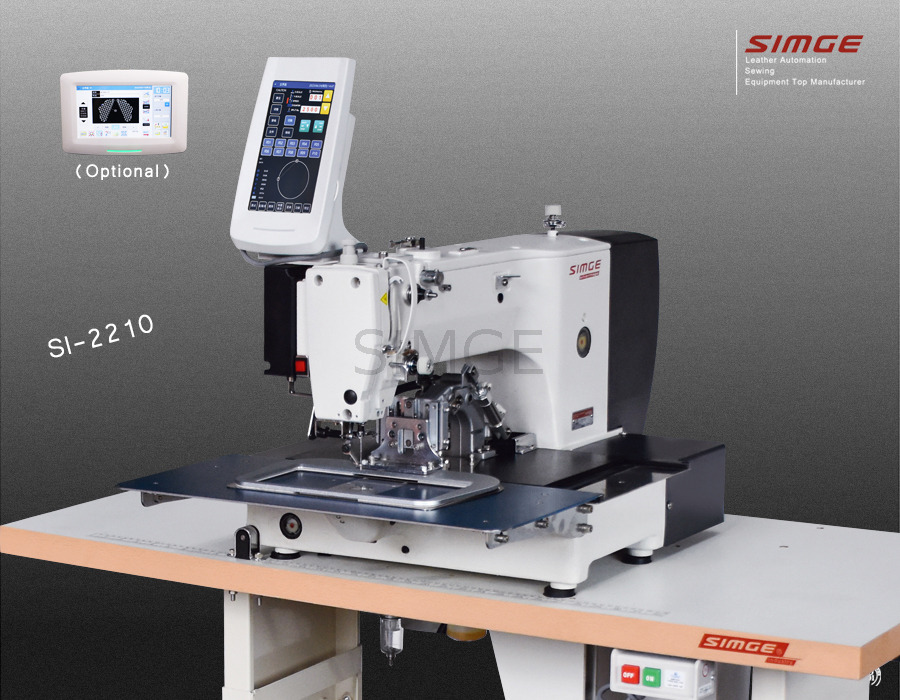

SI-2210 Industrial Computer Pattern Sewing Machine

Maximum sewing speed: ≤ 2700 rpm.
Sewing working area: 220mm*100mm
Maximum stitch length: 0.05 - 12.7mm.
Using machine needles: DP×17~16-21#.
Voltage: 220V.
maximum number of stitches: ≤ 20000 stitches / 1 pattern.
Presser foot height: ≤ 30mm.
intermittent presser foot rise: ≤ 22mm.
Motor power: AC servo motor 550W, all copper wire direct drive servo motor.
The number of stitches can be stored: 500000 stitches.
presser foot drive mode: pneumatic.
cloth feeding mode: pulse motor drive mode.
Pneumatic pressure: 0.5Mpa, 1.8L/min.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SI-2210

  • SIMGE

Adopt double shuttle, with automatic thread cutting, automatic thread sweeping, automatic stopping, automatic presser foot lifting and other functions.

The core parts of the shuttle and bobbin case adopt Japan Hirose, the guide rail adopts Japan THK, the solenoid valve adopts AIRTAC Adecco, the drive belt adopts Gates, etc.

Adopting touch operation control panel, which can easily prepare various patterns with more intuitive graphics.

Oil-free needle bar cleaning sewing, eliminating oil seepage and oil leakage from lubrication.

Adopting synchronous belt-driven feeding mechanism with stable performance operation.

Intelligent center presser foot, real time adjustment of the height of the center presser foot during sewing, perfect sewing.
